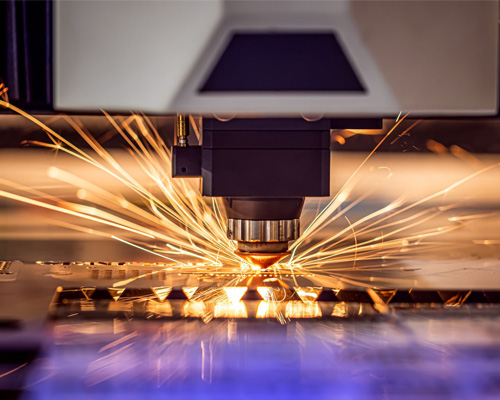

Laser Cutting is a high-precision technology that uses a focused laser beam to cut materials with accuracy and clean edges. It is ideal for complex shapes, fine detailing, and delivering smooth finishes with minimal material waste.
| Specification | Details |
|---|---|
| Cutting Table Size | 2000 mm × 4000 mm |
| Capacity |
SS Material – up to 20 mm thick Aluminium – up to 20 mm thick Carbon Steel – up to 20 mm thick |
| Large Table Size | 15 m × 3 m |
| Heavy-Duty Capacity |
SS Material – up to 110 mm thick Carbon Steel – up to 36 mm thick |

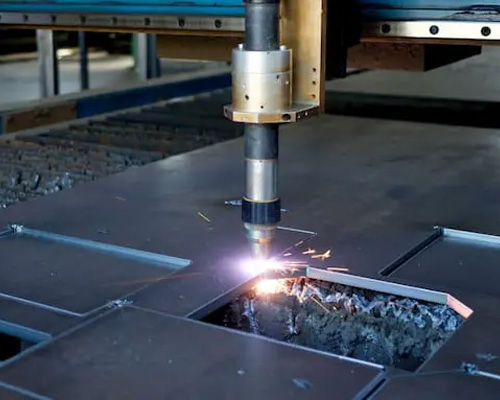

CNC Plasma Cutting uses a high-velocity jet of ionized gas controlled by CNC technology to cut through electrically conductive materials. It is especially effective for thick steel, stainless steel, and aluminum, offering speed and versatility for heavy-duty fabrication.
| Specification | Details |
|---|---|
| Cutting Table Size | 2000 mm × 4000 mm |
| Capacity (Table 1) | SS material – up to 16 mm thick, Carbon Steel – up to 20 mm thick |
| Large Table Size | 15 m × 3 m |
| Capacity (Table 2) | SS material – up to 110 mm thick, Carbon Steel – up to 36 mm thick |

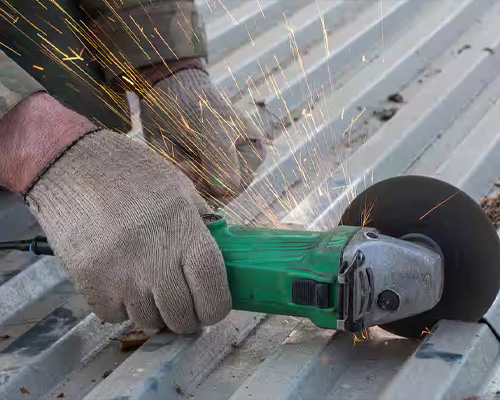

Profile Cutting is a versatile process for shaping complex designs from metal sheets or plates. It ensures high accuracy and repeatability, making it suitable for industrial machinery parts, frames, and custom components.
| Specification | Details |
|---|---|
| Cutting Table Size | 2500 mm × 6000 mm |
| Capacity |
Carbon Steel – up to 200 mm thick Stainless Steel – up to 100 mm thick |
| Applications | Industrial components, frames, heavy fabrication |

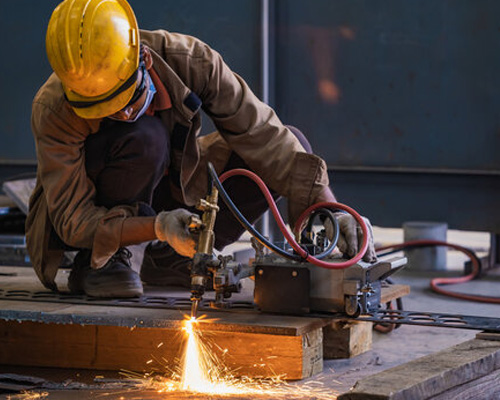

CNC Gas Cutting, also known as oxy-fuel CNC cutting, combines oxygen and fuel gas with computer-controlled precision to cut thick carbon steel plates. It is cost-effective, powerful, and reliable for heavy-duty industrial applications requiring robust cutting performance.
| Specification | Details |
|---|---|
| Cutting Table Size | 2500 mm × 6000 mm |
| Capacity | Carbon Steel – up to 300 mm thick |
| Applications | Heavy-duty industrial steel cutting |
